Name: Boss GX10 Guitar Effects Processor
SKU: 290213

Colorful Tones, Portable Design

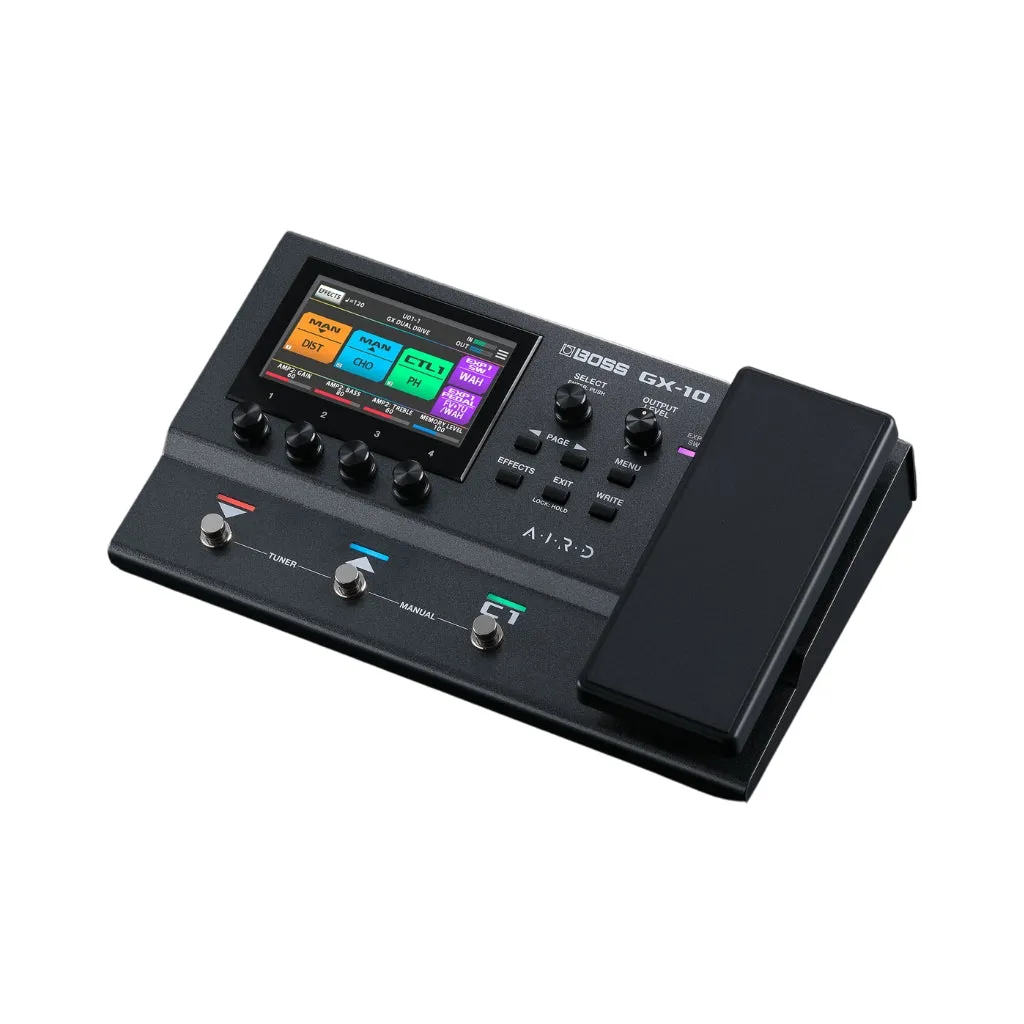

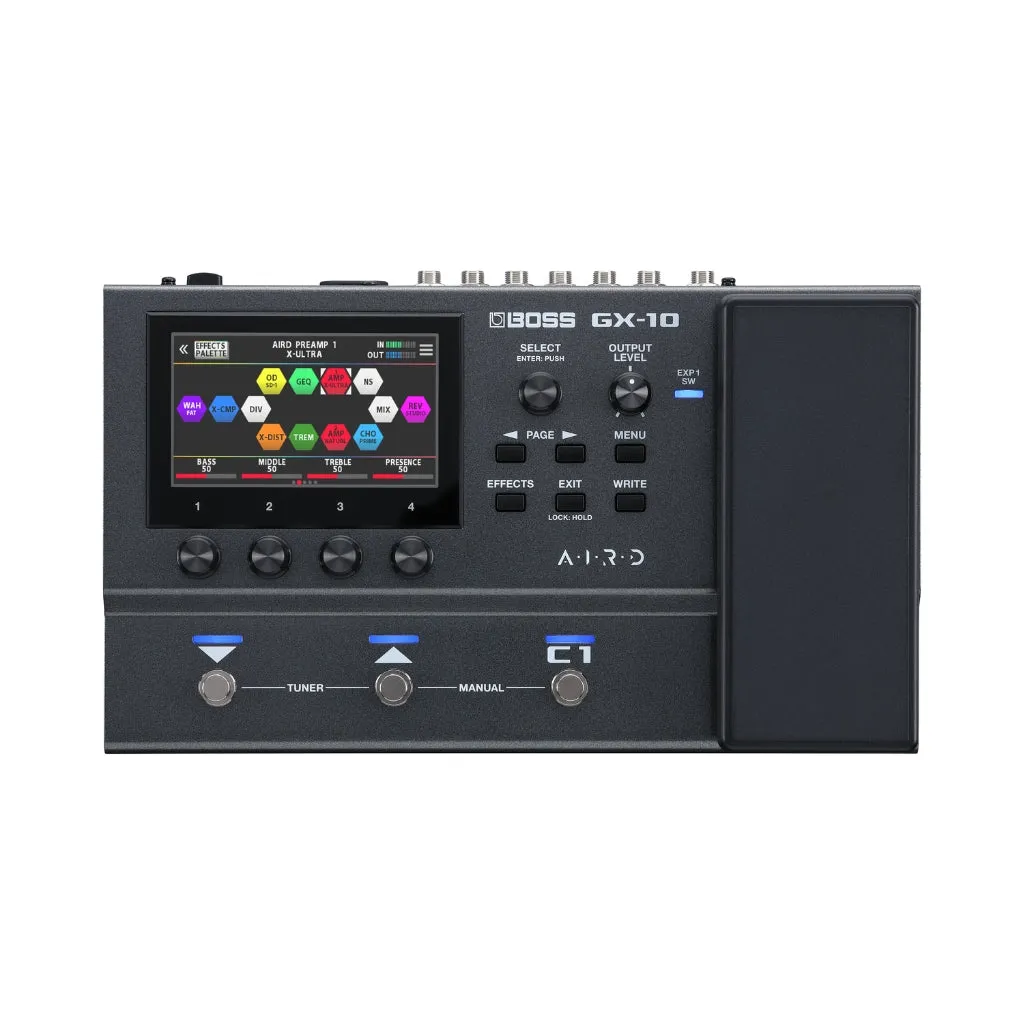

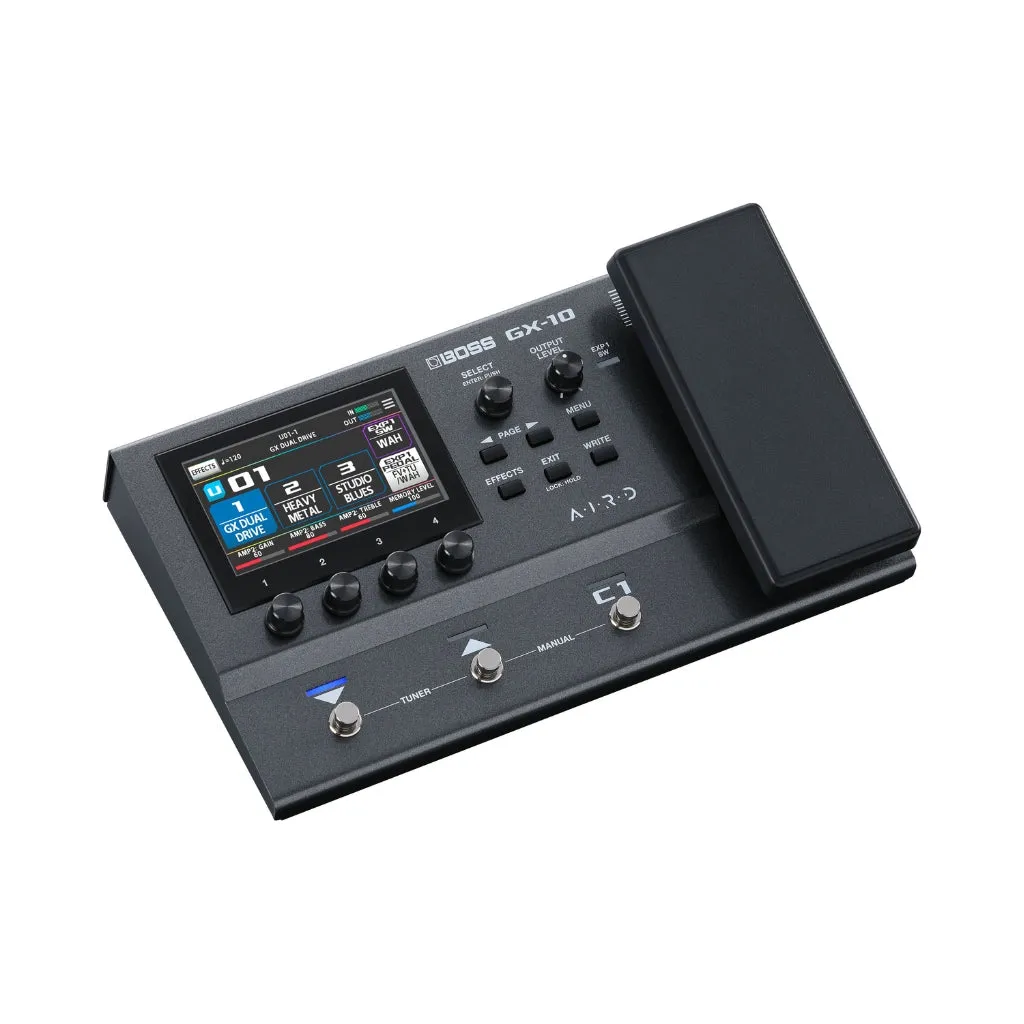

Players everywhere love the GX-100 for its streamlined design, free-flowing interface, and high-quality tones. Armed with the core GX-100 engine, the compact GX-10 brings you the same inspiring experience in an even more portable footprint. You get loads of AIRD amps and effects for covering every style, plus speedy sound building with the intuitive color touch display and panel knobs. Adding in multi-mode footswitches, an integrated expression pedal, and USB audio connectivity, the GX-10 seamlessly transitions from nightly stage performing to desktop recording, song creation, and daily practice sessions.

Features

Compact amp/effects processor for guitar and bass
The same sound engine and color touch display as the GX-100 in a portable, travel-ready design
Exceptional audio quality with 24-bit AD and 32-bit DA conversion, 32-bit floating-point processing, and 48 kHz sampling rate
Authentic tube amplifier tone and touch response with AIRD technology
32 amplifier types and 170 BOSS effects
Ultra-flexible amp/effect routing up to 15 assignable blocks
Wide selection of onboard speaker types and support for loading WAV speaker IRs
Streamlined modern design with a rugged metal chassis
Three footswitches with flexible control modes
Onboard expression pedal with toe switch
Connect up to two footswitches or an expression pedal for expanded control
Send/return loop for external pedals
Record and play tracks in music production software on a computer or mobile device* via a USB-C®
Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
Download and share Livesets at BOSS Tone Exchange (compatible with GX-100 Livesets)
Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

Specs

Sampling Frequency

48 kHz

AD Conversion

24 bits AF method
*AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

32 bits

Processing

32-bit floating point

Effects

170 Types

Maximum Number of Effects

15 3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)

*depending on the circumstances

Memories

198 (User) 99 (Preset)

Phrase Loop

38 sec. (MONO)
19 sec. (STEREO)

Tuner Internal Detection

/-0.1 cent

Nominal Input Level

INPUT: -10 dBu
RETURN: -10 dBu

Maximum Input Level

INPUT: 7 dBu
RETURN: 7 dBu

Input Impedance

INPUT: 1 M ohm
RETURN: 1 M ohm

Nominal Output Level

OUTPUT (L/MONO, R): -10 dBu
PHONES: -10 dBu
SEND: -10 dBu

Output Impedance

OUTPUT (L/MONO, R): 1 k ohm
PHONES: 44 ohms
SEND: 1 k ohm

Recommended Load Impedance

OUTPUT (L/MONO, R): 10 k ohms or greater
PHONES: 44 ohms or greater
SEND: 10 k ohms or greater

Controls

DOWN switch, UP switch, CTL1 switch, POWER switch, EXP1 switch,
PAGE button, MENU button, EFFECTS button, EXIT button, WRITE button, 1-4 knobs, SELECT knob, OUTPUT LEVEL knob,
EXP1 pedal

Display

Color Graphic LCD (480 x 272 dots) Touch screen

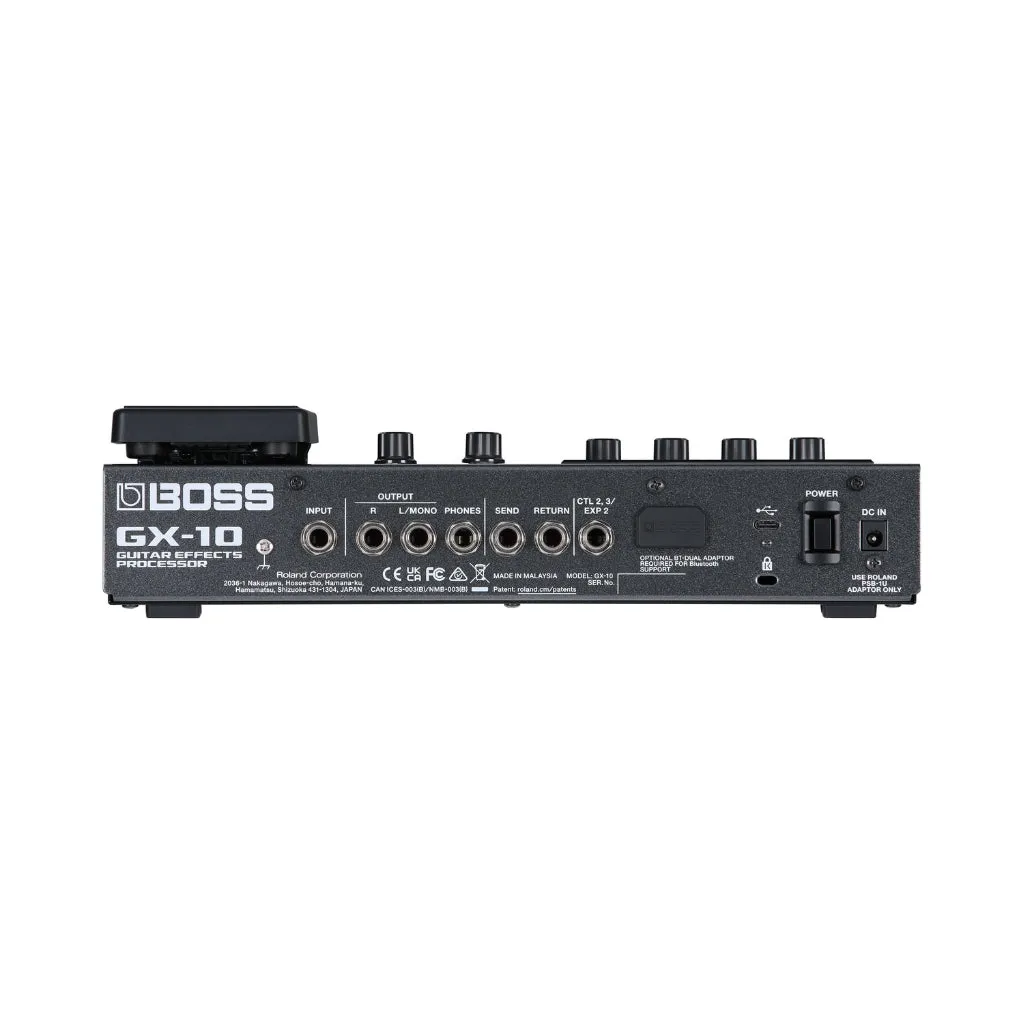

Connectors

INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type, PHONES jack: Stereo 1/4-inch phone type
CTL2,3/EXP2 jack: 1/4-inch TRS phone type
USB COMPUTER port: USB Type-C(R)
Bluetooth ADAPTOR connector: Dedicated connector
DC IN jack

Power Supply
